   Kamchatka
Lithospheric control on depth of island-arc magma generation beneath Kamchatka

Alexander B. Perepelov1, Alexei V. Ivanov2, Michael Yu. Puzankov3
& Sergei I. Dril1

1Vinogradov Institute of Geochemistry, Siberian Branch of the Russian Academy of Sciences, Favorsky St., 664033,Irkutsk, Russia; region@igc.irk.ru & sdril@igc.irk.ru

2Institute of the Earth's Crust, Siberian Branch of the Russian Academy of Sciences, Lermontov St., 128, 664033, Irkutsk, Russia; aivanov@crust.irk.ru

3Institute of Volcanology & Seismology, Far-East Branch of the Russian Academy of Sciences, Piipa Boulevard, 683006, Petropavlovsk-Kamchatsky, Russia; puzankov@kcs.iks.ru


The geochemistry of island-arc-type volcanic rocks from Kamchatka is controlled at least partially by lithospheric structure.


Introduction

Three volcanic belts, corresponding to the the Southern and Eastern Kamchatka ridges and the Sredinny Ridge, lie within the Kamchatka peninsula island-arc system (Figure 1). The central Kamchatka depression is located between the Eastern Kamchatka Ridge and the Sredinny Ridge volcanic belts. This depression is characterized by localization of its volcanic activity at the southern and northern ends. The Sredinny Ridge volcanic belt is atypical because of the spatial association of Ta-Nb-depleted island-arc-type- and alkaline volcanic rocks with geochemical features similar to intraplate basalts (Figure 2).

Figure 1. Structural setting of Pliocene-Quaternary volcanic rocks in Kamchatka. Thin dashed lines with numbers are depth contours of the Wadati-Benioff earthquake focal zone. The top of the figure is oriented north.

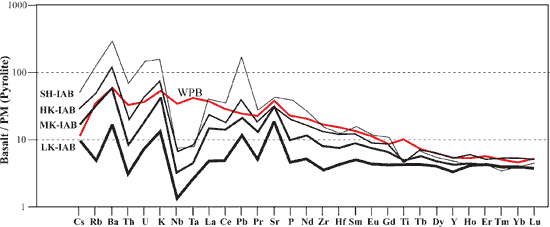

Figure 2. Trace-element, primitive-mantle-normalized diagrams for Pliocene-Quaternary basalts of the various geochemical series of Kamchatka. Composition of the primitive mantle (pyrolite) is after McDonough & Sun (1995). Acronyms: LK – low potassium series; MK – middle potassium series; HK – high potassium series; SH – shoshonitic series; IAB – island arc basalt; WPB – within-plate basalt (alkaline basalt). Representative samples are plotted. For more details of the series description see Volynets (1994). For the recent data on the WPB-type see Churikova et al. (2001), Ivanov et al. (2004) and Portnyagin et al. (2005). Click here or on figure for enlargement.



Several different models have been suggested to explain the origin of atypical alkaline volcanic rocks (Avdeiko & Palueva, 2003; Churikova et al., 2001; Ivanov et al., 2004; Portnyagin et al., 2005; Tatsumi et al., 1995; Volynets, 1994). Some of these models assume unusual conditions in the modern Pacific subducting slab system (Tatsumi et al., 1995; Churikova et al., 2001), while others postulate the presence of ocean-island-arc material in the melt source (Churikova et al., 2001) or a contribution from a mantle unmodified by subduction processes because of various processes (slab-window – Avdeiko & Palueva, 2003; asthenospheric lateral flow – Portnyagin et al., 2005; a mantle plume – Volynets, 1994). On the basis of inverse trace-element modeling we suggest a source for the alkaline volcanic rocks of recycled Kula paleoslab oceanic crust from as deep as the lowermost part of the mantle transition zone (Ivanov et al., 2005).

Alkaline volcanic rocks inherit some "subduction" trace element features (e.g., moderate depletion in Ta and Nb, and enrichment in Pb and Sr). Therefore it is important to understand better the origin of typical subduction-related volcanic rocks. Despite so large a spectrum of opinion on the origin of alkaline basalts, almost all studies accept that the geochemistry of island-arc-type volcanic rocks is dependent mainly (only?) on the depth of degassing within the subducting slab (i.e. the depth of the Wadati-Benioff seismic zone, Figure 1). Here we summarise a compilation of ~200 trace-element analyses obtained by inductively coupled plasma mass spectrometry (ICP-MS) for typical island-arc-type basalts from Kamchatka. Half of these are the authors’ unpublished data. This compilation strengthens the case that the geochemistry of island-arc-type volcanic rocks is controlled, at least partially, by the lithospheric structure of the Kamchatka peninsula. A discussion of alkaline volcanic rocks of intraplate geochemical affinity will be presented in a later webpage.

The lithospheric structure of Kamchatka

The lithospheric structure of the Kamchatka peninsula is heterogeneous. A number of studies show that the western and southern parts of the peninsula are composed of continental-type crustal blocks, whereas the eastern part is formed from intra-oceanic island-arc accreted terranes. Therefore, eastern Kamchatka has thinner crust of oceanic type (Shapiro et al., 1987; Bogdanov & Chechovich, 2004). The boundary of the continental crust is marked by the exposure of Paleozoic? – Mesozoic granitic and metamorphic complexes and by Neogenic granitoids derived by crustal anatexis (Antipin & Perepelov, 2004) (Figure 1).

Trace element and Sr-isotope variations in island arc basalts

Trace-element variations in low-, medium- and high-K basalts are attributed to world-wide across-arc zoning (i.e. increase in large-ion-lithophile (LIL) and light rare-earth elements (LREE) with increasing depth of subducting slab degassing, reflected in the depth of the Wadati-Benioff seismic zone; Miyashiro, 1974). Such variations within the island-arc-system of Kamchatka have been attributed to the same effect (Volynets, 1994; Churikova et al., 2002). However, if this is so, the Pliocene-Quaternary volcanic complexes with island-arc geochemistry (Figure 2) should reflect the local depth of the Wadati-Benioff seismic zone. In other words, the Southern and Eastern Kamchatka volcanic belts should be geochemically similar but should differ from the Sredinny Ridge volcanic belt, because the first two are underlain by the subducting slab at 100-180 km and the latter at 300-400 km depth (Figure 1).

However, the opposite is true. The island-arc geochemical type basalts of the Southern volcanic belt differ from those of the Eastern volcanic belt but bear similarities with basalts from the Sredinny Ridge volcanic belt. In general, the South Kamchatka and Sredinny Ridge island-arc geochemical type basalts are characterized by higher LIL and LREE compared to the Eastern Kamchatka basalts (Figure 2). This can be seen on various diagrams (Figures 3-6).

Despite the difference in the trace elements, the 87Sr/86Sr ratios in island-arc geochemical type basalts from all the three volcanic belts are indistinguishable from each other. They are all restricted to the narrow range of 0.7033-0.7037 (Figure 5).

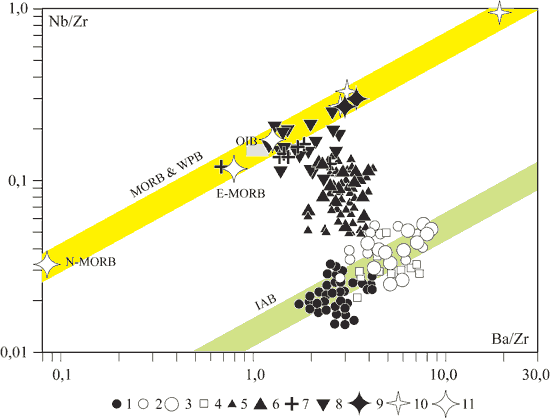

Figure 3. Nb/Zr-Ba/Zr diagram for various types of volcanic rock from Kamchatka (modified after Perepelov et al., in press). 1 – LK and MK IAB of the Eastern Kamchatka volcanic belt; 2 and 3 - MK and HK IAB of the Southern Kamchatka and Sredinny Ridge volcanic belts respectively; 4 - shoshonitic and K-alkaline basaltoids of western Kamchatka (not shown in Figure 1 because of their Paleogene age); 5 and 6 – MK and HK WPB respectively of the Sredinny Ridge volcanic belt; 7 – WPB rocks from Nachikinsky and Hailulya volcanoes (the two northeastern alkaline volcanoes in Figure 1) (Portnyagin et al., 2005); 8 and 9 – alkaline basalts and basanites of eastern and western Kamchatka respectively (not shown in Figure 1 because of their Miocene age); 10 – average compositions of basanites and alkaline basalts of the Rungwe Province, East African rift system (Ivanov et al., 1998), Chad (Gourgaud & Vincent, 2004) and Oman (Worthing & Wilde, 2002); 11 – composition of oceanic basalts (N- and E-MORB – normal and enriched mid oceanic ridge basalts, respectively; OIB – oceanic island basalt) (Sun & McDonough, 1989). Each Kamchatkan geochemical type is represented by new data belonging to the authors plus published ICP-MS data (Churikova et al., 2001; Grib et al., 2003; Ivanov et al., 2004).

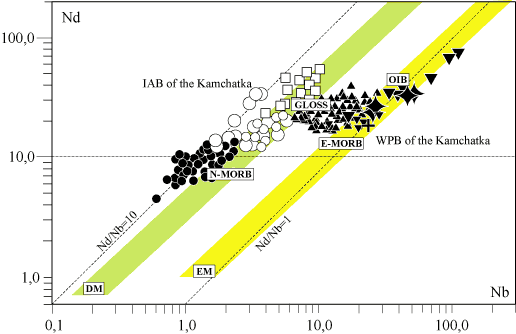

Figure 4. Nb-Nd diagram for various types of volcanic rock from Kamchatka. Symbols as for Figure 3.

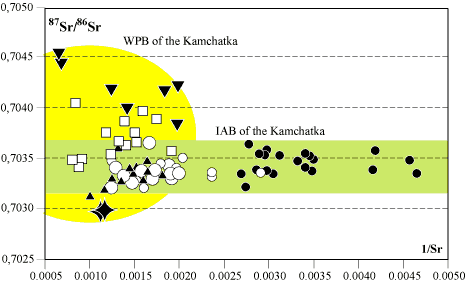

Figure 5. 87Sr/86Sr vs 1/Sr for the IAB and WPB of Kamchatka. Symbols as for Figure 3.

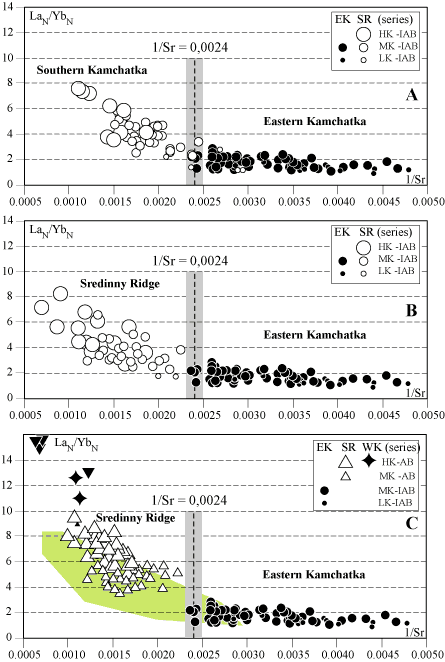

Figure 6. Trace element features of IAB and WPB from the three volcanic belts of Kamchatka as reflected in the LaN/YbN-1/Sr diagram. La and Yb concentrations are normalized to Cl (McDonough & Sun, 1995). On all three diagrams black circles represent compositions of IAB from the Eastern Kamchatka volcanic belt. In A and B open circles represent compositions of IAB from the Southern Kamchatka and Sredinny Ridge volcanic belts, respectively. In C the coloured field represents the general compositional range of IAB from the Southern Kamchatka and Sredinny Ridge volcanic belts. Alkaline volcanic rocks of the WPB type are plotted for comparison in C. Acronyms: EK – Eastern Kamchatka, SK – Southern Kamchatka; SR – Sredinny Ridge, WK – Western Kamchatka; AB – alkaline basalts and basanites. Other acronyms as in Figure 2.



Discussion and conclusions

From the data above it can be seen,on one hand, hat the island-arc geochemical type basalts of the Southern Kamchatka and Sredinny Ridge volcanic belts are similar to each other, despite the large difference in depths of the Wadati-Benioff focal earthquake zone. On the other hand, the Southern and Eastern Kamchatka volcanic belts are situated above parts of the Wadati-Benioff seismic zone of equal depth, yet their basalts are different in key trace element concentrations and ratios (Figures 3, 4 & 6). Therefore, a process or processes other than degassing of the subducting slab must be responsible for controlling the trace-element chemistry of the island-arc geochemical type of basalts, at least in Kamchatka.

Both the Southern Kamchatka and Sredinny Ridge volcanic belts are situated within the continental lithosphere (Figure 1). From this, and the charactaristics of the basalt chemistry, we hypothesise that the primary control of the trace-element variations is lithospheric structure. The lithosphere can control the chemistry of primary sublithospheric magmas in two ways, by;

  1. admixing lithospheric material with sublithospheric magma, and
  2. controlling the depths of the source of melting of the sublithospheric magma.

Very uniform 87Sr/86Sr ratios in the island-arc geochemical type of basalts of all the three volcanic belts of Kamchatka irrespective of the lithosphere type (i.e. continental vs. oceanic) preclude the first explanation. If the chemistry of the basalts is controlled by the composition of the lithosphere we would expect higher 87Sr/86Sr ratios in basalts within the continental lithospheric block compared with the accreted oceanic block. Therefore, we favor the second explanation in which the continental lithospheric block is thicker and thus the depth of the melting within the sublithospheric mantle wedge is greater. Depth (and thus pressure) control the major-element chemistry (e.g., the Southern Kamchatka and Sredinny Ridge belts contain high-K rock series whereas the Eastern Kamchatka belt does not). Trace-element abundances are probably controlled by degree of partial melting, which is lower beneath the thicker, continental lithosphere and higher beneath the thinner, oceanic lithosphere (Figure 7).

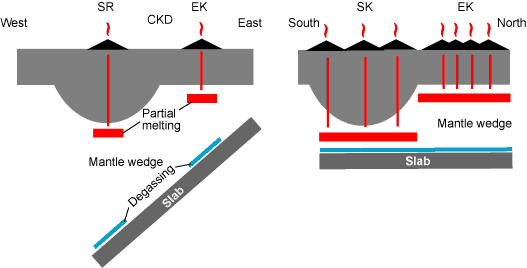

Figure 7. General model of the origin of the Pliocene – Quaternary IAB of Kamchatka. IAB magmas beneath Eastern Kamchatka (EK) originate above a degassed slab region at shallower depth, and with a higher degree of partial melting. IAB magmas beneath the Sredinny Ridge and Southern Kamchatka form instead at greater depth and with a lower degree of partial melting. In all cases the mantle wedge is viewed as a relatively homogeneous reservoir. The Pliocene-Quaternary WPB-type magmas, which occur dominantly within the Sredinny Ridge volcanic belt (Figure 1) represent another puzzle, which will be discussed in a subsequent webpage.


Acknowledgements: The study is supported by RFBR grants 04-05-64800 and 05-05-64477.


References

  • Antipin V.S. and Perepelov A.B. (2004) Geochemical types of granitoids of different geodynamic settings (Siberia, Mongolia, Kamchatka). Metallogeny of the Pacific Northwest: Tectonics, Magmatism and Metallogeny of Active Continental Margins (Khanchuk, A.I. et al. Eds) Dalnauka, Vladivostok, 176-179.
  • Avdeiko, G.P. and Palueva, A.A. (2003) Geodynamic conditions for magmagenesis in Kuril-Kamchatka island arc system. Volcanism and geodynamics. Proc. 2nd Rus. Conf. Volc. Paleovolc., Ekaterinburg, 164-169. (In Russian)
  • Bogdanov N.A. and Chechovich V.D. (2004) Cenozoic continental-margin volcanism in the Pacific and Bering Sea sectors of Kamchatka: Geodynamic implications. Geologiya i Geofizika, 45, 421-429.
  • Churikova T, Dorendorf F. and Worner G. (2001) Sources and fluids in the mantle wedge below Kamchatka, Evidence from across-arc geochemical variation. J. Petrol., 42, 1567-1593.
  • Gourgaud A. and Vincent P.M. (2004) Petrology of two continental alkaline intraplate series at Emi Koussi volcano, Tibesti, Chad. J. Volc. Geotherm. Res., 129, 261-290.
  • Grib E.N., Perepelov A.B., Leonov V.L. (2003) Geochemistry of Uzon-Geizernaya depression (Kamchatka). Volcanology and Seismology, 4, 11-28 (in Russian).
  • Ivanov et al. (1998) Late Cenozoic alkaline-ultrabasic and alkaline basaltic magmatism of the Rungwe province, Tanzania. Petrology, 6, 208-229.
  • McDonough W.F. and Sun S.-S. (1995) The composition of the Earth. Chem. Geol., 120, 223-253.
  • Miyashiro A. (1974) Volcanic rock series in island arcs and active continental margins. American Journal of Science, 274, 321-355.
  • Portnyagin, M. et al. (2005) Transition from arc to oceanic magmatism at the Kamchatka-Aleutian junction. Geology, 33, 25-28.
  • Shapiro M.N. et al. (1987) Essay on tectonic evolution of Kamchatka. Moscow, Nauka, 248 p. In Russian.
  • Tatsumi Y., Kogiso T. and Nohda S. (1995) Formation of third volcanic chain in Kamchatka: generation of unusual subduction-related magmas. Contrib. Mineral. Petrol., 120, 117-128.
  • Volynets, O.N. (1994) Geochemical types, petrology, and genesis of Late Cenozoic volcanic rocks from the Kurile-Kamchatka island-arc system. Int. Geol. Rev., 36, 373-405.
  • Worthing M.A. and Wilde A.R. (2002) Basanites related to Late Eocene extension from NE Oman. Journal of the Geological Society, London., 159, 469–483.
  • Perepelov, A.B. et al. (2006) Neogene basanites of the Western Kamchatka – mineralogical and geochemical features and geodynamic position. Petrology, accepted.
  • Sun S.-S. and McDonough W.F. (1989) Chemical and isotopic systematics of oceanic basalts: Implications for mantle composition and process. Magmatism in the Oceanic Basins (Saunders, A.D. & Norry, M.J. Eds.), Geol. Soc. London Spec. Publ. no. 42, 313-345.
last updated 12th January, 2006
